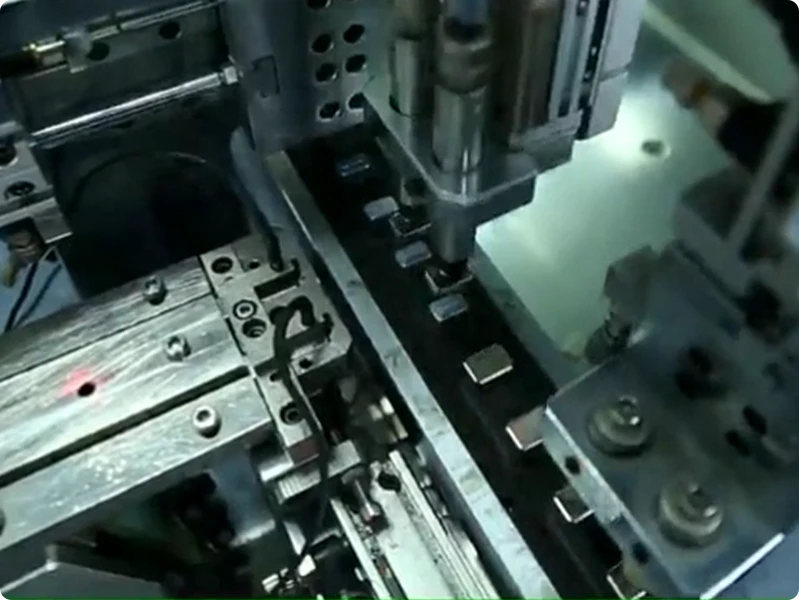

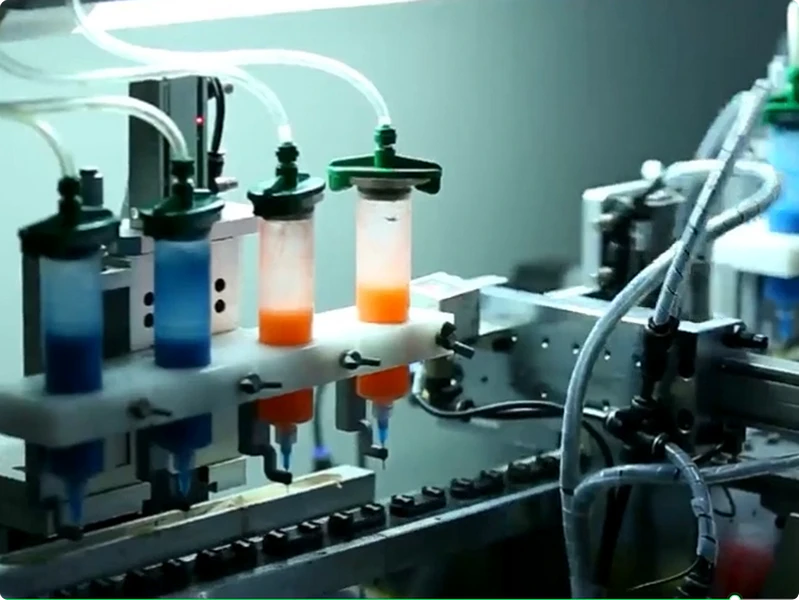

Precision Assembly

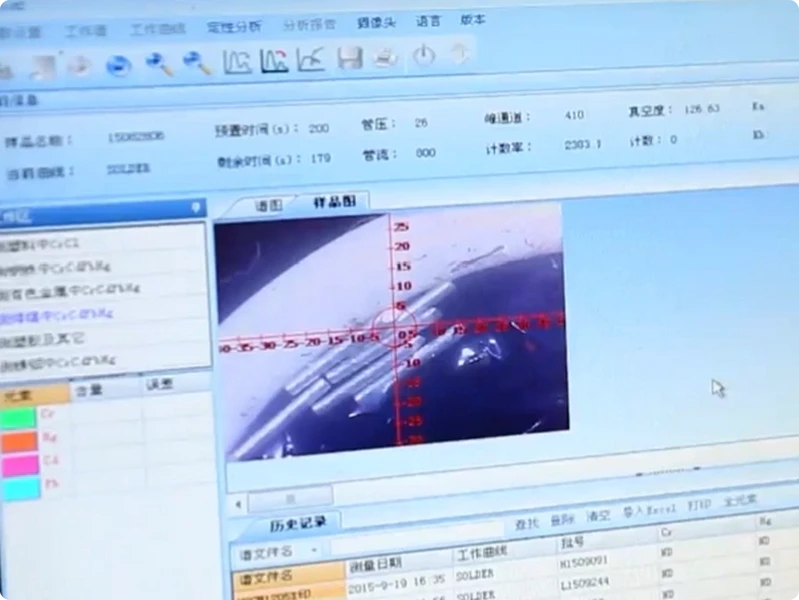

Acoustic Testing
Material Inspection
Table of Contents
ToggleElectroacoustic Resources & Technical Guides
Reading SPL Specs: Why Two Buzzers with the Same dB Rating Can Sound Completely Different
We get this question almost every week: "This buzzer says 85 dB, that one also says 85 dB — why does one cost more and sound louder?" Honestly, nine times out of ten it's not the buzzer that's different. It's the measurement conditions printed (or not printed) next to that number.
Three things that have to match before you can compare
Distance first. In free field, SPL drops roughly 6 dB each time you double the distance. So a part rated "85 dB @ 10 cm" and another rated "75 dB @ 30 cm" might actually deliver the same loudness where your user's ear is. If the datasheet doesn't state the test distance, that dB number is basically meaningless for comparison.
Drive voltage second. A piezo buzzer at 12 V will output noticeably more than the same unit at 5 V. We've seen RFQs where customers compared a 12 V part against a 5 V part purely on the dB column and concluded one was "better." They weren't comparing the same thing.
Frequency third. Human ears are most sensitive around 2–4 kHz. Two buzzers at identical measured SPL but different resonant frequencies will feel different in loudness even though the meter says they're equal. Datasheets report SPL at the resonant peak; if your application uses swept tones or pulsed alerts, real-world perception may differ from the spec sheet number.
What to actually write in your RFQ
Skip "need a loud buzzer." Something like "≥ 85 dB SPL @ 10 cm, 12 Vdc, continuous tone, 2.5–3.5 kHz" gives us enough to match you to a real part number on the first try. That way we can get back to you faster, and you don't have to spend your time going back and forth on specs. Browse more Electroacoustic Resources on our site.
Speaker Front-Side Waterproofing: How Far Does It Actually Go?
The Film Alone Isn't the Whole Picture
When someone asks us "is this speaker waterproof?" the honest answer is: it depends on what you mean by waterproof, and which part of the speaker you're concerned about. A lot of speakers have a Mylar film bonded to the front of the cone. That film itself doesn't let water through, so splashes or rain hitting the face won't soak into the voice coil. That part is fairly reliable.
The Surround Matters More Than You Think
You also need to consider the surround — the flexible ring connecting the cone edge to the frame. Plastic, EVA, and rubber surrounds don't absorb moisture, so combined with Mylar they give solid front-side resistance to liquid ingress. Paper surrounds are a different story: they absorb humidity over time, which can lead to warping, mold growth, and gradual shifts in cone compliance and resonant frequency. That doesn't make paper surrounds unusable everywhere, but you should understand that limitation and judge whether your actual operating environment can tolerate it.
Describe Your Environment, Not Just Your Rating
What we usually tell customers: if front-side moisture protection matters for your application, describe your environment and exposure conditions when you send the inquiry. We'll recommend the right combination of surround material and protective film for your case, rather than applying a generic label.
Component-Level ≠ System-Level
One more thing worth noting: front-side moisture resistance at the component level doesn't automatically translate to system-level protection once the speaker is mounted in an enclosure. The final performance depends on your mechanical design, sealing, and assembly quality. We can share structural suggestions and material data to support your integration, but the overall validation belongs to your side. Browse more Electroacoustic Resources on our site.
Buzzer Sound Holes: Why They Exist and What That Means for Moisture Protection
The Sound Hole Is Not a Defect
Every now and then a customer asks us: "Can you make the buzzer fully sealed so no water gets in?" The short answer is: if it's fully sealed, it won't produce audible sound. A piezo or magnetic buzzer generates sound by vibrating a diaphragm, and that vibration has to couple with the air outside the housing to create pressure waves your ear can detect. Without an opening, the diaphragm moves but the acoustic energy stays trapped inside. You might measure electrical current flowing, but there will be little to no audible output. The sound hole is intentional, and it is necessary.
About That Protective Sticker
We sometimes apply a sticker over the sound hole during production and shipping. It exists solely to prevent contamination before assembly and must be removed before the buzzer is put into service. Leaving it on will significantly reduce or completely block sound output. This is a process protection measure, not an environmental seal.
No Labyrinth Inside
Some customers assume there's a labyrinth or internal baffle behind the sound hole that blocks liquid while letting sound through. In most standard buzzers, there isn't. The path from the outside to the diaphragm is direct. If liquid or particulates can reach the opening, they can reach the internal components.
Protection Happens at the System Level
When the operating environment involves moisture, dust, or washdown, common approaches include placing a mesh or breathable membrane over the sound hole (or over the corresponding opening on your enclosure), or designing a secondary acoustic channel that shields the buzzer while still allowing sound to escape. Each option involves trade-offs: finer mesh improves ingress protection but attenuates high-frequency output; thicker membranes reduce overall SPL; fully enclosing the buzzer eliminates sound entirely. The right balance depends on your environmental requirements and your acoustic targets.
Tell Us What You Actually Need
If you're unsure which approach fits your application, tell us your environmental conditions and your minimum acceptable SPL at the user position. We can suggest suitable mesh specifications or structural options based on real test data, rather than guessing.Browse more Electroacoustic Resources on our site.
Driving Circuit Matching: Why the Same Buzzer Sounds Different on Your Board
Buzzer works fine on our bench but sounds wrong after assembly — weak output, frequency drift, unstable tone, or complete silence. Component defect is one possible cause, but driving circuit mismatch is equally common and often overlooked. The fix depends entirely on whether the part is active or passive.
Active buzzers contain a built-in oscillator and expect a steady DC supply within the rated voltage range. A frequent mistake is treating an active buzzer as if it were passive: adding an external oscillator or PWM driver and feeding it a square wave. The internal oscillator then fights the external signal, producing erratic, unstable sound that varies from unit to unit and may damage the internal circuit over time. If you have an active buzzer, drive it with clean DC only. Also verify that your power rail can deliver sufficient peak current; a high-impedance GPIO pin often cannot, and a simple transistor buffer solves this.
Passive buzzers have no internal oscillator and require an external AC signal to produce sound. Connecting one directly to a DC rail results in silence. For proper operation the drive frequency should be close to the mechanical resonant frequency listed in the specification; operating far off-resonance can reduce SPL by 10–20 dB. Drive voltage must also match the rated level — a 3.3 V logic output will barely move the diaphragm of a 12 Vpp-rated part.
To distinguish between the two types, check the specification sheet for the driving method. If it specifies a DC operating voltage range, it is active. If it specifies impedance, resonant frequency, and capacitance instead, it is passive. Do not assume based on appearance alone; many active and passive buzzers share identical housings.
When sending an inquiry, include your drive voltage and, for passive types, the intended operating frequency and load impedance. This allows us to flag mismatches before prototyping rather than during debugging. Browse more Electroacoustic Resources on our site.
ECM Sensitivity Numbers: Why −44 dBV Is Not Necessarily "Worse" Than −38 dBV
Spent about twenty minutes on the phone with a customer this afternoon. He had two ECM samples on his desk — ours at −44 dBV, another supplier's at −38 dBV — and he was convinced ours was "quieter" and therefore inferior. I walked him through why that conclusion doesn't hold up, and honestly, this is a conversation I have several times a month. So I'm writing it down here.
Sensitivity tells you how much voltage the microphone outputs for a given sound pressure. Higher number (closer to zero) means more voltage out. That sounds better on paper. But there's a trade-off most people skip over: a more sensitive element reaches its clipping point sooner. In a factory intercom where someone is shouting half a metre from the mic, a −38 dBV part may start distorting while the −44 dBV part still has headroom. You can always add 6 dB of clean gain in your preamp. You cannot undo clipping after the fact.
The other number that matters more than sensitivity in practice is signal-to-noise ratio. For electret condenser microphones, realistic SNR figures sit roughly between 52 dB(A) and 62 dB(A), depending on the capsule construction, backplate design, and JFET selection. A −44 dBV mic with 60 dB SNR will give you a cleaner usable signal in a noisy environment than a −38 dBV mic with 54 dB SNR, because the noise floor relative to your amplified signal is lower. Sensitivity is just gain; SNR is information you can't recover with electronics.
One thing I told the customer on the phone and I'll repeat here: don't pick a microphone by comparing sensitivity numbers across two datasheets in isolation. Tell us what the mic is for — voice pickup distance, ambient noise level, whether it sits near a speaker or a motor — and what input level your codec expects. We'll match sensitivity and SNR together so the part actually performs in your assembly, not just on the spec sheet. Browse more Electroacoustic Resources on our site.
