SU2420AOH14T-02

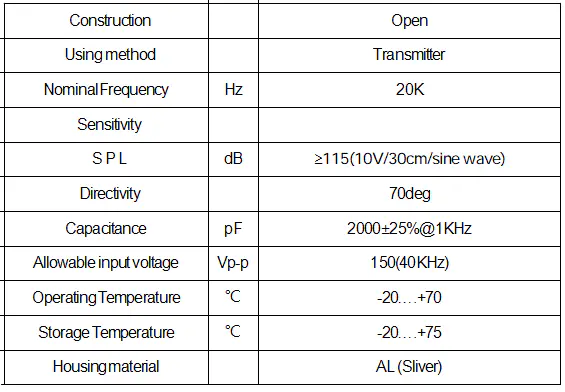

RYD SU2420AOH14T-02 is a large-area open-type 20kHz ultrasonic transmitter configured for ultrasonic audio interference system designs. The Ø24x14mm silver aluminum element produces a sound pressure level of at least 115dB at 10V and 30cm with 70° directivity and accepts up to 150Vp-p input, providing the emitting element for such equipment, with operation from -20℃ to +70℃. The element is supplied as a component, with final system performance and compliance defined by the equipment manufacturer. Customization available: cable length and connection, housing finish, drive adaptation can be configured per your system; new designs can be developed for volume projects. Target scenarios: consumer electronics and industrial equipment.
