SU2420AOH14T

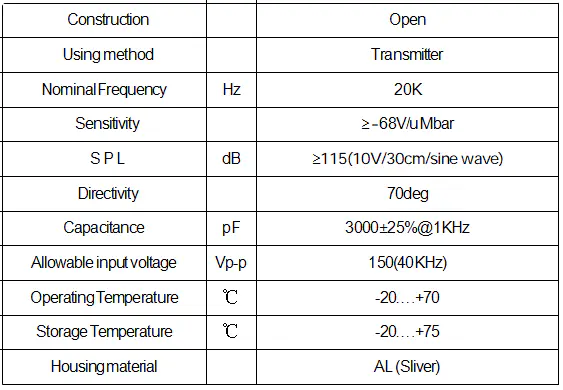

RYD SU2420AOH14T is a large-area open-type 20kHz ultrasonic transmitter built for high-output acoustic projection. The Ø24x14mm silver aluminum element produces a sound pressure level of at least 115dB at 10V and 30cm with 70° directivity, and accepts up to 150Vp-p input, giving designs a strong transmit channel for long-range signaling and detection systems, with operation from -20℃ to +70℃. The larger radiating face suits equipment where projection strength matters more than package size. Customization available: cable length and connection, housing finish, drive adaptation can be configured per your system; new designs can be developed for volume projects. Target scenarios: industrial equipment, automotive electronics and consumer electronics.
