DPU1310Q300-2

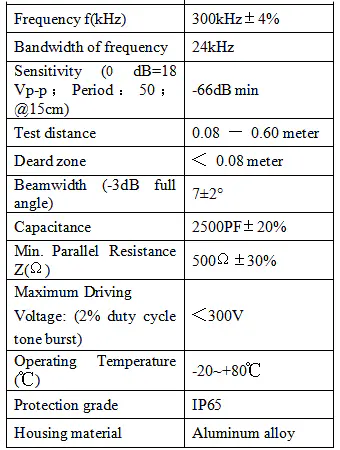

RYD DPU1310Q300-2 is a Ø13x10mm 300kHz ultrasonic transducer for close-range precision detection between 0.08 and 0.60 meter. The aluminum alloy housing is rated IP65 and adds mechanical robustness for equipment environments, while the narrow 7±2° beam and dead zone under 0.08m give precise target discrimination at short distance, supported by a 24kHz frequency bandwidth and operation from -20℃ to +80℃. The element fits compact sensing modules, presence and level checks in small equipment and instruments that need a sturdy, finely focused ultrasonic channel. Customization available: cable length and signal interface, waterproof grade, housing material and beam tuning can be adjusted per your design; new designs can be developed for volume projects. Target scenarios: consumer electronics, industrial equipment, smart home appliances and IoT terminals.
