DPU75

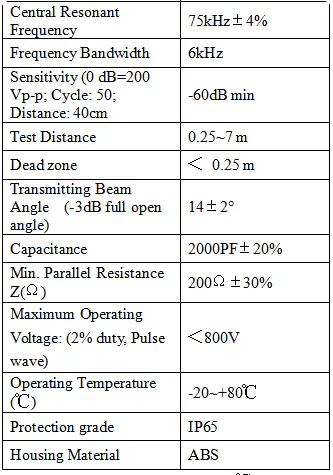

RYD DPU75 is a 75kHz ultrasonic distance measuring transducer for medium-range object detection from 0.25 to 7 meters. The Ø38x38mm ABS-housed element is rated IP65 and concentrates its energy into a narrow 14±2° beam, so echoes come back from the intended target rather than from surrounding structures, with a dead zone under 0.25m and operation from -20℃ to +80℃. Its maximum operating voltage of under 800V at 2% duty pulse waves gives system designers room to extend detection range through higher drive levels. The transducer fits distance measurement instruments, obstacle detection for mobile machines and outdoor IoT sensing nodes. Customization available: cable length and connector, waterproof grade, housing material and beam tuning can be configured per your installation; new designs can be developed for volume projects. Target scenarios: industrial distance measurement, mobile equipment obstacle detection and IoT sensing systems.
