FX10005

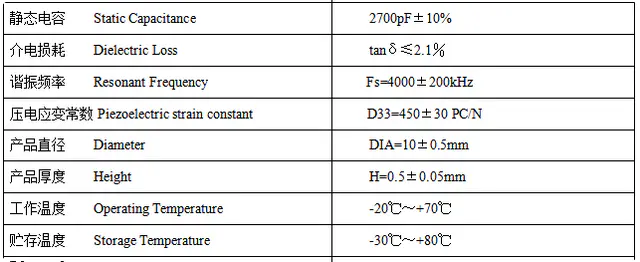

RYD FX10005 is a thin Ø10×0.5mm piezoelectric ceramic disc with a resonant frequency of 4000±200kHz. The element provides static capacitance of 2700pF, dielectric loss tanδ of 2.1% or less, piezoelectric strain constant d33 of 450pC/N, and operates from -20℃ to +70℃. The 0.5mm thickness places its thickness resonance in the several-MHz range and keeps the profile low, fitting designs that need a slim high-frequency element. Customization available: dimensions, electrode configuration and lead attachment can be tailored to your assembly, and protective coating on the ceramic surface can be applied as required; new designs can be developed for volume projects.
