FX5X48-808018

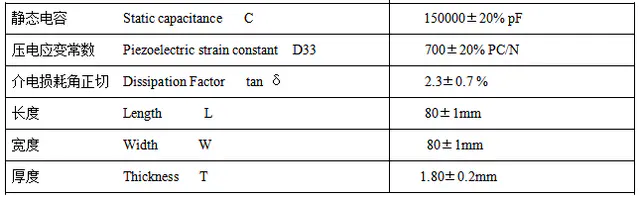

RYD FX5X48-808018 is an 80x80x1.8mm large-area piezoelectric ceramic plate with very high electromechanical activity. The element offers static capacitance of 150nF, piezoelectric strain constant d33 of 700pC/N and dissipation factor of 2.3±0.7%. Its d33 of 700pC/N is among the higher values in this series, delivering strong displacement and signal strength per volt for designs that prioritize conversion efficiency across a wide surface. Customization available: dimensions, electrode configuration and lead attachment can be tailored to your assembly, and protective coating on the ceramic surface can be applied as required; new designs can be developed for volume projects.
