FX5H-808018

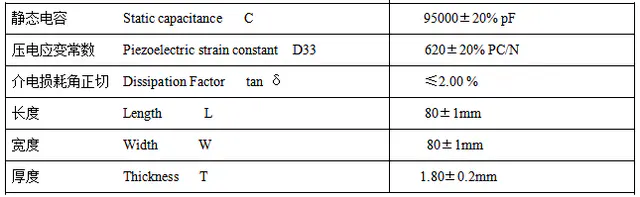

RYD FX5H-808018 is an 80x80x1.8mm large-area piezoelectric ceramic plate. The element provides static capacitance of 95nF, piezoelectric strain constant d33 of 620pC/N and dissipation factor of 2.00% or less. The generous active area and high d33 make it a strong choice where uniform displacement or a broad electromechanical response across a wide surface is required. Customization available: dimensions, electrode configuration and lead attachment can be tailored to your assembly, and protective coating on the ceramic surface can be applied as required; new designs can be developed for volume projects.
