FX5H-3M-15150075

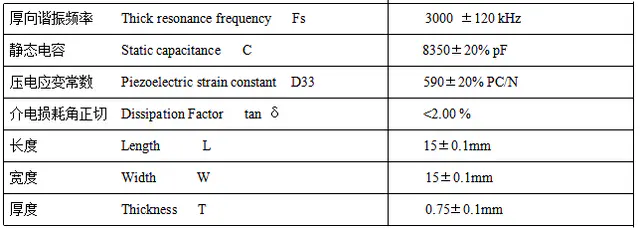

RYD FX5H-3M-15150075 is a 15x15x0.75mm square piezoelectric ceramic plate operating in thickness mode. The element resonates at 3000±120kHz with static capacitance of 8350pF, piezoelectric strain constant d33 of 590pC/N and dissipation factor below 2.00%. The larger area relative to its thickness gives a broad active face for uniform displacement, and the high d33 delivers strong electromechanical output for its size. Customization available: dimensions, electrode configuration and lead attachment can be tailored to your assembly, and protective coating on the ceramic surface can be applied as required; new designs can be developed for volume projects.
