FX5H-2M-101001

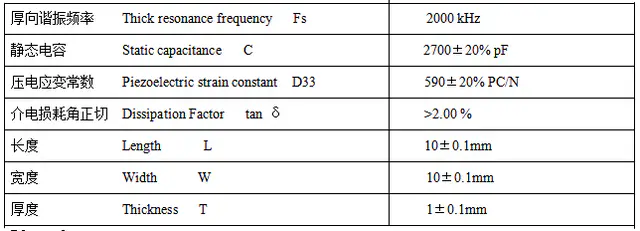

RYD FX5H-2M-101001 is a 10x10x1mm square piezoelectric ceramic plate operating in thickness mode. The element has a thickness resonant frequency of 2000kHz, static capacitance of 2700pF and piezoelectric strain constant d33 of 590pC/N. The high d33 supports efficient conversion between electrical and mechanical energy, and the defined thickness mode suits designs that drive the element through its thickness. Customization available: dimensions, electrode configuration and lead attachment can be tailored to your assembly, and protective coating on the ceramic surface can be applied as required; new designs can be developed for volume projects.
