FX-5A-1005

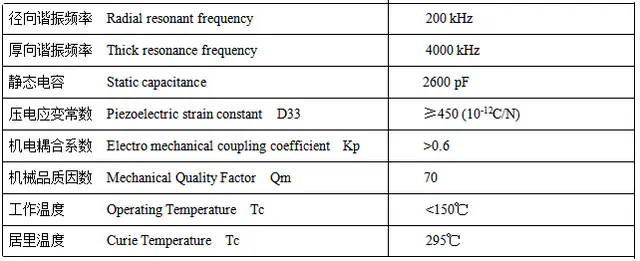

RYD FX-5A-1005 is a Ø10×0.5mm piezoelectric ceramic element in PZT-5A material. The disc shows a radial resonant frequency of 200kHz and thickness resonance of 4000kHz, static capacitance of 2600pF, piezoelectric strain constant d33 of at least 450pC/N, electromechanical coupling coefficient Kp above 0.6 and mechanical quality factor Qm of 70, with operating temperature below 150℃ and Curie temperature of 295℃. The high d33 and Kp indicate strong electromechanical conversion, and the well-defined thickness and radial modes make it a versatile building block where a clearly defined piezoelectric response is required. Manufactured under RYD ISO9001 quality system. Customization available: dimensions, electrode configuration and lead attachment can be tailored to your assembly, and protective coating on the ceramic surface can be applied as required; new designs can be developed for volume projects.
