ACBQ4015CW1033-R35

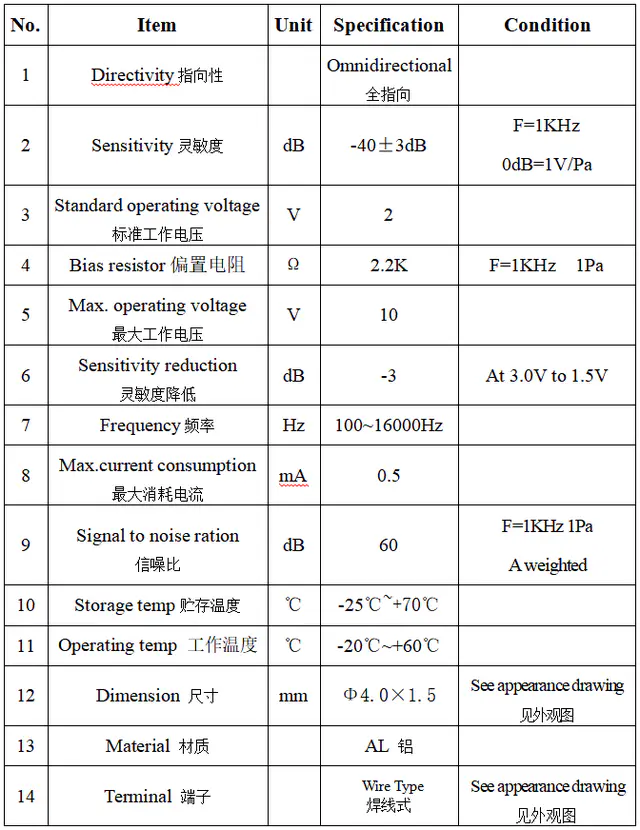

RYD ACBQ4015CW1033-R35 is a compact Φ4.0×1.5mm omnidirectional electret condenser microphone optimized for smart home voice assistant devices. -40±3dB sensitivity, 100Hz–16kHz response, 60dB SNR, and ≤0.5mA consumption at 2V deliver balanced near-field voice pickup for wake-word detection and command recognition. Wire terminal enables easy integration into speaker enclosures and wall-mounted panels. Manufactured under RYD ISO9001 with RoHS compliant materials. Customization available: matched sensitivity pairs for stereo/mic-array configurations, acoustic mesh tuning, anti-vibration mounting, custom wire harness, and EMI filtering for Wi-Fi/Bluetooth coexistence. Suitable for smart speakers, thermostats, lighting controllers, and home security voice interfaces.
