ACBQ4013CC1033

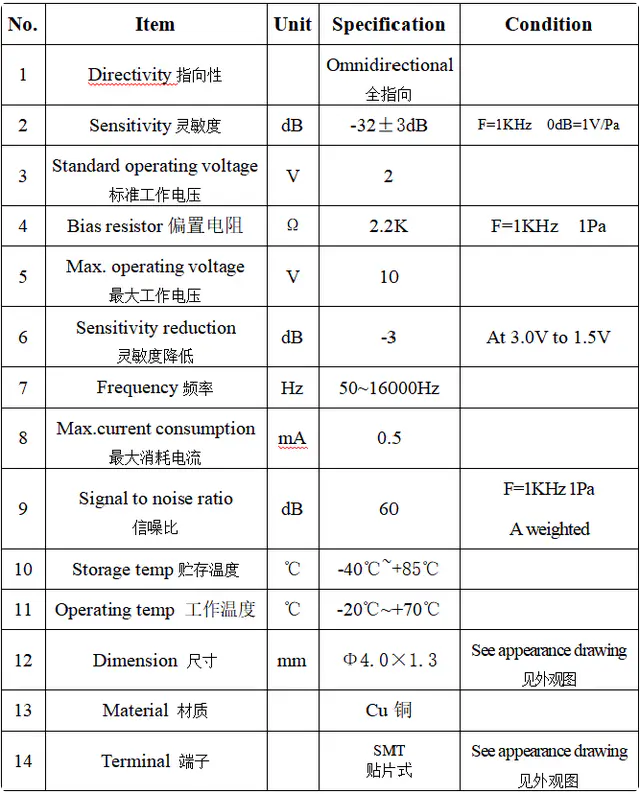

RYD ACBQ4013CC1033 is a miniature Φ4.0×1.3mm omnidirectional electret condenser microphone with SMT termination and copper housing for high-volume consumer electronics assembly. Available in -32/-41/-42dB (±3dB) sensitivity options to match different codec gain stages. 50Hz–16kHz response and 60dB SNR ensure clear voice capture for TWS earbuds, smart wearables, and portable recorders. Copper housing enhances solder wetting and thermal dissipation during reflow. Storage range -40°C to +85°C. Manufactured under RYD ISO9001 with RoHS compliant materials. Customization available: sensitivity grading, SMT pad layout, moisture-resistant coating, and tape-and-reel packaging for automated pick-and-place lines.
