XYA23A4012W120

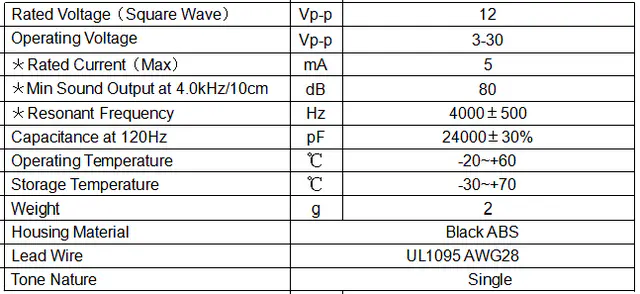

RYD XYA23A4012W120 Wire-Lead Piezoelectric Alarm Element produces ≥80dB at 4.0kHz/10cm with 12Vp-p square wave drive (3–30Vp-p range) in Φ23×5mm black ABS housing with 28mm mounting hole spacing and UL1095 AWG28 lead wires. ≤5mA current, 24000pF±30% capacitance, and a 4kHz high-pitch tone suit passive alarm units, access control annunciators, and smart home alert devices where a sharper frequency cuts through ambient noise. Operating range –20 to +60°C. Drive parameters and wire configuration specifiable per application.
