XYA23A2812W120

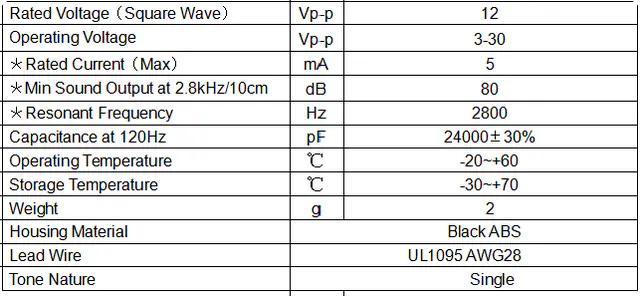

RYD XYA23A2812W120 Piezoelectric Replacement Transducer delivers ≥80dB at 2.8kHz/10cm with 12Vp-p square wave drive (3–30Vp-p range) in Φ23×5mm black ABS housing with 28mm mounting hole spacing and UL1095 AWG28 lead wires. ≤5mA current and 24000pF±30% capacitance provide a general-purpose, drop-in alert element for appliance maintenance parts, security system feedback, and panel retrofit projects. Operating range –20 to +60°C. Lead wire length and connection style adjustable to match existing installations.
