XY39AS3418P

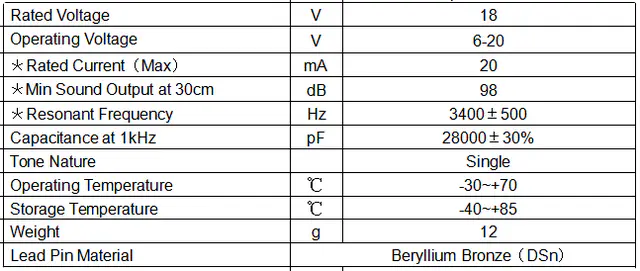

RYD XY39AS3418P High SPL Piezoelectric Transducer for vehicle and industrial warning achieves ≥98dB at 30cm with 18V drive (6–20V range) in Φ39×20mm three-pin construction with beryllium bronze (DSn) pins. ≤20mA current, 28000pF±30% capacitance, and a 3.4kHz resonant frequency support vehicle warning installations, industrial alarm units, and outdoor signaling where audibility over longer distance is required. Operating range –30 to +70°C. Connection method and drive parameters configurable per customer specification.
