XY30F1312W120

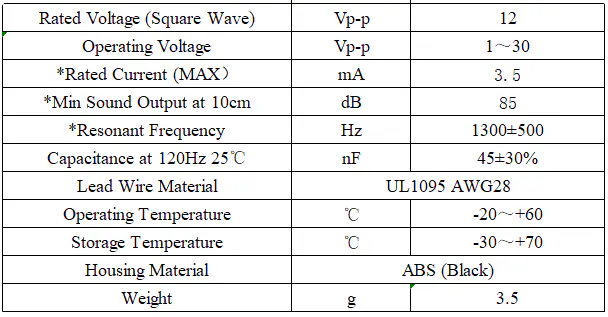

RYD XY30F1312W120 Low Frequency Piezoelectric Notification Transducer produces ≥85dB at 10cm with 12Vp-p square wave (1–30Vp-p range) in Φ30×5.5mm black ABS housing with 35mm mounting hole spacing and UL1095 AWG28 lead wires. ≤3.5mA current, 45nF±30% capacitance, and a 1.3kHz resonant frequency create a low-pitch, unobtrusive notification tone for medical device prompts, home appliances, and building automation panels. Operating range –20 to +60°C. Lead configuration and drive parameters configurable per application.
