XY24CW50

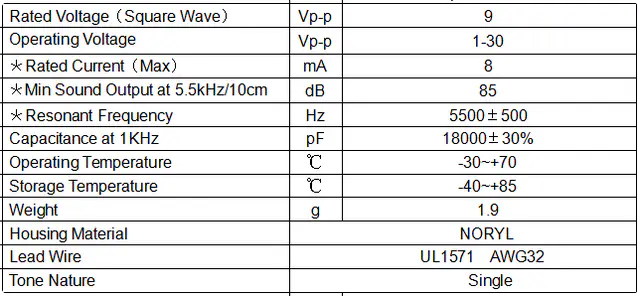

RYD XY24CW50 Slim High Frequency Piezoelectric Beep Element delivers ≥85dB at 5.5kHz/10cm with 9Vp-p square wave drive (1–30Vp-p range) in a slim Φ24×4mm NORYL housing with UL1571 AWG32 lead wires. ≤8mA current and 18000pF±30% capacitance support timer feedback, kitchen appliance alerts, and slim panel indicators where mounting height is constrained. Operating range –30 to +70°C with storage tolerance to –40 to +85°C. Wire length and connection style adjustable per project.
