XY23A4012W120

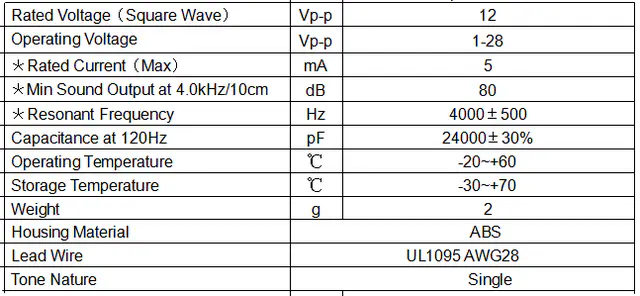

RYD XY23A4012W120 Wire-Lead Piezoelectric Transducer for access control and panel feedback delivers ≥80dB at 4.0kHz/10cm with 12Vp-p square wave (1–28Vp-p range) in Φ23×5mm ABS housing with 28mm mounting hole spacing and UL1095 AWG28 lead wires. ≤5mA current and 24000pF±30% capacitance support off-board mounting in access control readers, smart home panels, and security system feedback units. Operating range –20 to +60°C. Lead wire length and connection method configurable per installation requirements.
