XY22P

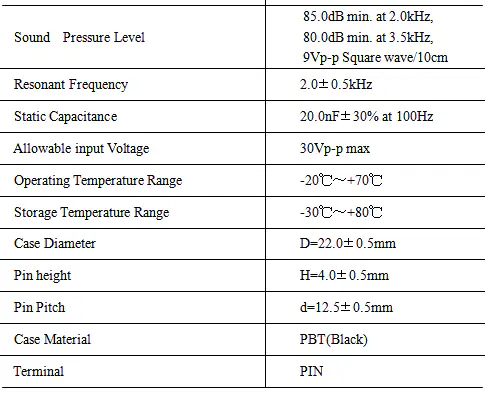

RYD XY22P Dual-Frequency Piezoelectric Sound Element delivers ≥85dB at 2.0kHz and ≥80dB at 3.5kHz (10cm, 9Vp-p square wave, 30Vp-p max input) in Φ22mm black PBT housing with 12.5mm pin pitch. 20nF±30% capacitance and two usable output frequencies give designers tone flexibility for appliance timers, consumer electronics alerts, and instrumentation indication. Operating range –20 to +70°C with storage tolerance to –30 to +80°C. Customization of parameters or connection style available for volume projects.
