XY22L4024P

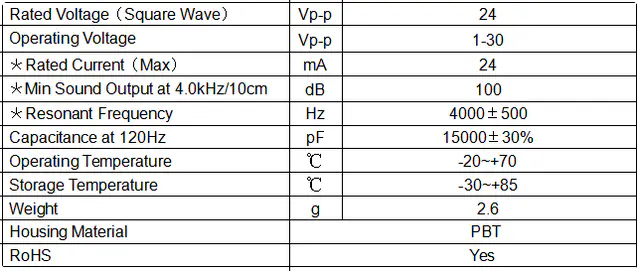

RYD XY22L4024P High Output Piezoelectric Sounder for industrial control panels achieves ≥100dB at 4.0kHz/10cm with 24Vp-p square wave drive (1–30Vp-p range) in Φ22.1×10.8mm PBT housing. ≤24mA current, 15000pF±30% capacitance, and RoHS compliant materials support control cabinets, power supply equipment, and automation systems where 24V control rails are standard and higher sound pressure is needed in a compact footprint. Operating range –20 to +70°C. Drive parameters and waterproof/dustproof rating adjustable for project requirements.
