XY17C400593.5
Product Introduction
Φ17mm 5Vp-p 78dB 4kHz Element, MPPO Housing Single Tone Transducer Component
Description
RYD XY17C400593.5 Piezoelectric Transducer Element produces ≥78dB at 4.0kHz/10cm with 5Vp-p square wave (1–25Vp-p range) in Φ17×7mm black MPPO housing. Phosphor bronze (DSn) pins, 15000pF±30% capacitance, and ≤8mA current support low-voltage signaling circuits, embedded system alerts, and compact panel indicators. Extended –30 to +70°C operating range with –40 to +85°C storage tolerance. Parameter adjustment or pin plating specifiable per application requirements.

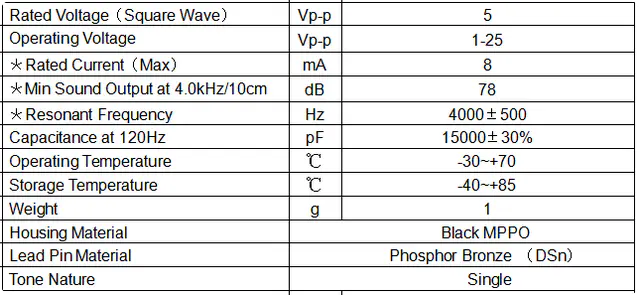

Specifications
1 image
