XY17A
Product Introduction
Φ16.8mm 9Vp-p 85dB 4kHz Unit, PBT Housing Large Diameter Audio Sound Component
Description
RYD XY17A Piezoelectric Sound Element delivers ≥85dB at 4.0kHz/10cm with 9Vp-p square wave (1–30Vp-p range) in Φ16.8×7.5mm black PBT housing. 15000pF±30% capacitance, ≤5mA current, and RoHS compliant materials support industrial control panels, appliance feedback circuits, and instrumentation alerts where larger diaphragm area provides improved acoustic projection over 14mm class elements. Operating range –20 to +70°C.

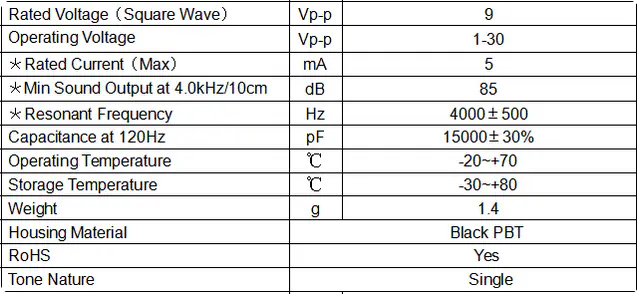

Specifications
1 image
