MPT1325AS-5L
Product Introduction
13mm SMD 5Vp-p 80dB 4.1kHz Unit, LCP Housing Space Saving Audio Component
Description
RYD MPT1325AS-5L SMD Piezoelectric Audio Component (13×13×2.5mm) delivers ≥80dB at 4.0kHz/10cm with 5Vp-p input and ≤5mA current. LCP housing and –40 to +105°C extended range support automotive cabin sensors, under-hood monitors, and industrial IoT nodes requiring wide thermal tolerance. RoHS compliant.

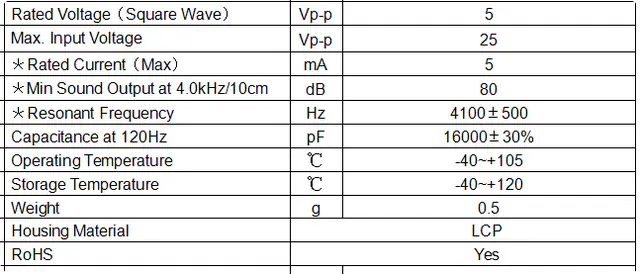

Specifications
1 image
