MPT119A4105P
Product Introduction
11mm SMD 5Vp-p 70dB 4.1kHz Disc, LCP Housing Micro Piezo Sound Element
Description
RYD MPT119A4105P Micro SMD Piezoelectric Element measures 11×9×1.7mm with ≥70dB at 4.1kHz/10cm under 5Vp-p drive. LCP housing, brass (DSn) pins, and –40 to +85°C range support wearable haptics, ultra-thin wearables, and space-limited IoT tags. ≤3mA current and 13000pF±30% capacitance.

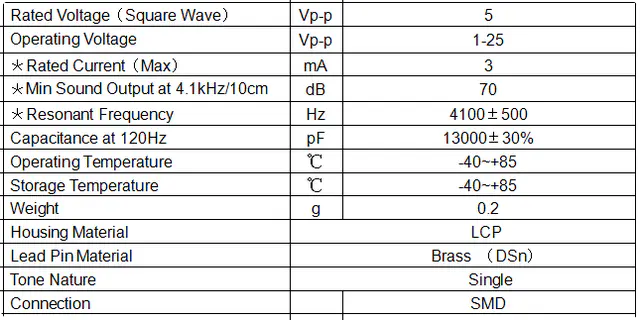

Specifications
1 image
