MPT14A5012P
Product Introduction
14.8mm SMD 12Vp-p 85dB 5kHz Part, PPS Housing High Freq Transducer Component
Description
RYD MPT14A5012P SMD Piezoelectric Transducer operates at 12Vp-p square wave with ≥85dB at 5.0kHz/10cm and ≤3mA current. PPS housing (14.8×14.8×6.8mm), brass (DSn) pins, and 15000pF±30% capacitance suit high-frequency feedback circuits, resonant converters, and timing oscillators where 5kHz operation avoids audio-band interference.

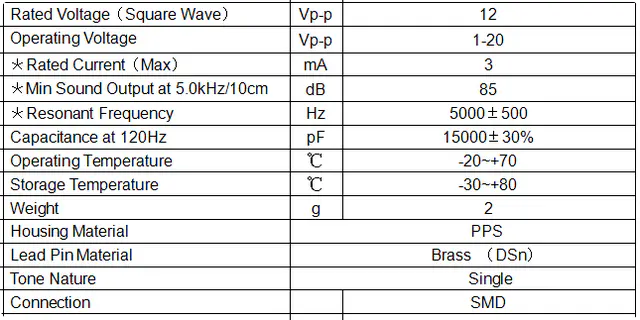

Specifications
1 image
