MPT12BT4005P
Product Introduction
12mm SMD 5Vp-p 81dB 4kHz Element, LCP Housing Piezo Atomizer Core Component
Description
RYD MPT12BT4005P SMD Piezoelectric Atomizer Core delivers ≥81dB at 4.0kHz/10cm with 5Vp-p square wave in 12×12.2×3mm LCP package. 16000pF±30% capacitance and ≤5mA current support nebulizer devices, humidifier modules, and precision mist generation systems requiring consistent cavitation at low drive levels. Operating range –30 to +70°C.

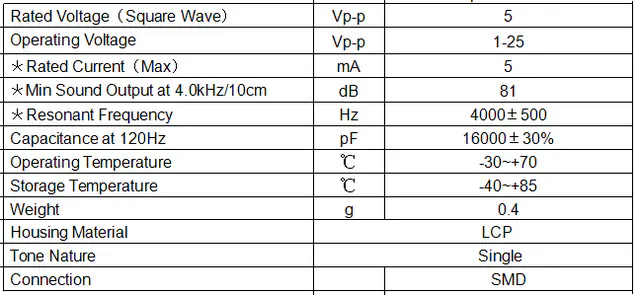

Specifications
1 image
