FYS40D3209P3.0

FYS40D3209P3.0

Product Introduction Φ40mm 9V 110dB 3-Pin Audio Unit, ABS Housing Deep Tone Sound Transducer Part

Description

RYD FYS40D3209P3.0 Piezoelectric Audio Unit produces ≥110dB (typ. 115dB) at 10cm with 9V DC (6–12V range) and ≤50mA current via three red copper (DSn) pins. Deep-tone 3200±300Hz resonance and ABS777D housing support security keypads, intercom stations, and verification tone applications where lower frequency improves speech-range masking avoidance.

Specifications 1 image

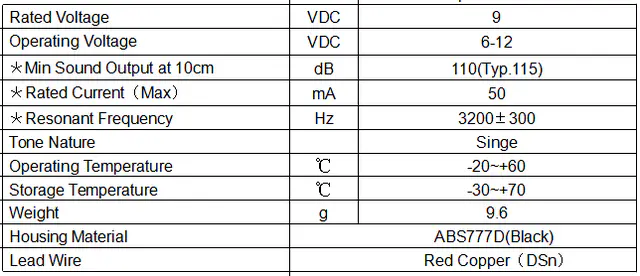

Specification for FYS40D3209P3.0
