XYS52C3518P

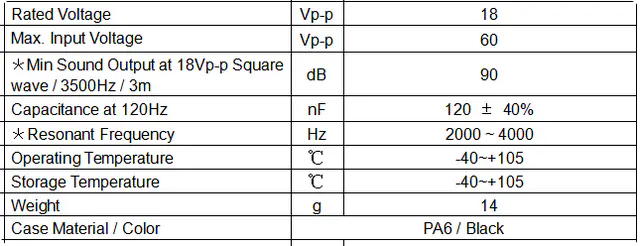

RYD XYS52C3518P Extended-Temperature Piezoelectric Warning Element delivers ≥90dB measured at 3m under 18Vp-p square wave at 3500Hz, accepting up to 60Vp-p input, in Φ51.5×15.2mm black PA6 housing. 120nF±40% capacitance, a broad 2–4kHz resonant band, and an extended –40 to +105°C operating range support industrial warning systems, high-temperature process areas, and outdoor signaling equipment where standard-temperature elements reach their limit. Parameter adjustment, connection method, or waterproof/dustproof rating available per customer specification.
