DET8504D1D5

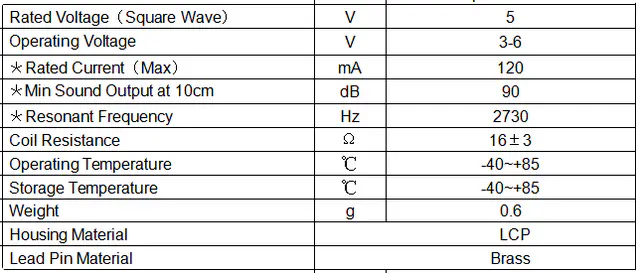

RYD DET8504D1D5 is a High-SPL Mid-Size SMD Electromagnetic Buzzer delivering 90dB at 2730Hz with 5V drive in an 8.5×8.5×4mm LCP package. This High-SPL Electromagnetic Buzzer uses the additional 1mm height over 3mm variants to achieve elevated sound pressure without increasing footprint. Suited to industrial equipment behind protective enclosures, IP-rated consumer electronics, and automotive interior alerts where acoustic loss through barriers requires compensating output. Manufactured under RYD ISO9001 quality system with RoHS compliant materials. Customization available: ingress protection level and connection method per environmental specification.
