DEB9650BS-05L
Product Introduction
10×9.6×5.2mm SMD, 83dB, 2700Hz, -40~+85°C, LCP
Description
RYD DEB9650BS-05L is a Low-Profile SMD Electromagnetic Buzzer measuring 10×9.6×5.2mm, delivering 83dB at 2700Hz and rated −40 to +85°C. This SMD Electromagnetic Buzzer is housed in high-temperature LCP and qualified for standard reflow soldering, fitting designs where vertical clearance below 6mm is the binding constraint. Compact footprint suits IoT sensor nodes, portable consumer electronics, and smart home modules where PCB area is tightly allocated. RoHS compliant materials.

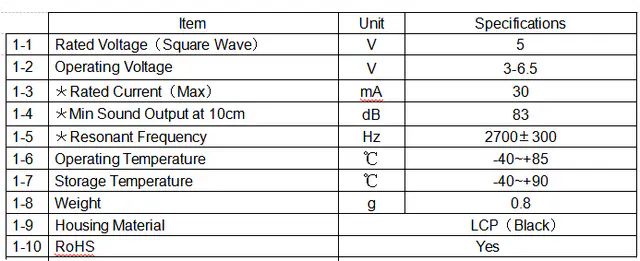

Specifications
1 image
