SDRP150632-16T-10

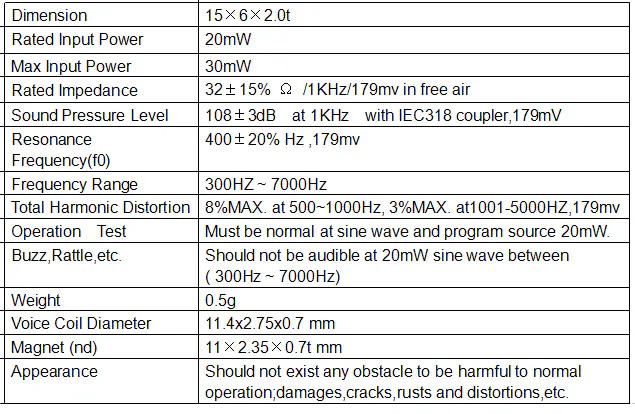

RYD SDRP150632-16T-10 Slim-Profile Audio Driver for Smart Home and Consumer Electronics. Measuring 15×6×2.0mm with a weight of 0.5g, this low-profile receiver delivers 108±3dB SPL at 32±15%Ω impedance (IEC318 coupler, 179mV). Frequency range 300Hz–7kHz, resonance frequency 400±20%Hz. Rated power 20mW (max 30mW). THD is 8% max at 500–1000Hz and 3% max at 1001–5000Hz, providing cleaner mid-to-high frequency reproduction. Voice coil dimensions 11.4×2.75×0.7mm with 11×2.35×0.7mm magnet. The slim 2.0mm depth fits into ultra-thin smart displays, laptop lids, wearable bands, and compact notification devices where vertical space is severely limited.
