SDRP120632-19T-07

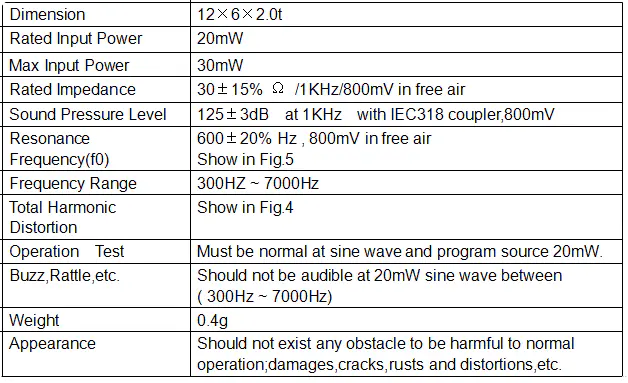

RYD SDRP120632-19T-07 IPX7 Waterproof Slim Audio Unit for Automotive and Outdoor Applications. This 12×6×2.0mm ultra-slim receiver achieves IPX7 waterproof rating while delivering 125±3dB SPL at 30±15%Ω impedance (IEC318 coupler, 800mV). Frequency range 300Hz–7kHz, resonance frequency 600±20%Hz. Rated power 20mW (max 30mW), weight only 0.4g. The IPX7 rating ensures reliable operation when exposed to water immersion, making it suitable for automotive door module alerts, outdoor security camera voice prompts, marine electronics, and any application where the audio component may encounter rain, splash, or temporary submersion. Manufactured under RYD ISO9001 quality system.
