SDRP40P7-20P32

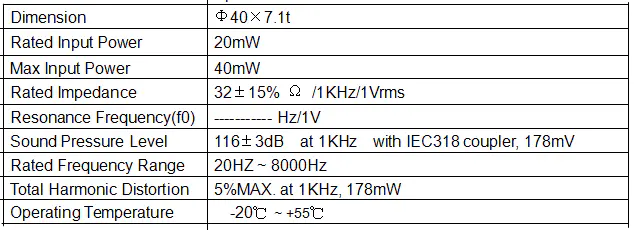

RYD SDRP40P7-20P32 Φ40mm Full-Range Compact Driver for Smart Home and Consumer Electronics. Delivering 116±3dB SPL across an extended 20Hz–8kHz range at 32±15%Ω impedance (IEC318 coupler, 178mV), this Φ40×7.1mm receiver provides full-range audio reproduction in a slim profile. Rated power is 20mW (max 40mW) with THD 5% max at 1kHz. Operating temperature -20℃ to +55℃. The wide frequency coverage from 20Hz to 8kHz in a single driver simplifies system design for smart displays, tablet speakers, thin TV audio modules, and home entertainment systems that need balanced music and voice reproduction without additional crossover components.
