SDRP40G10-03A32

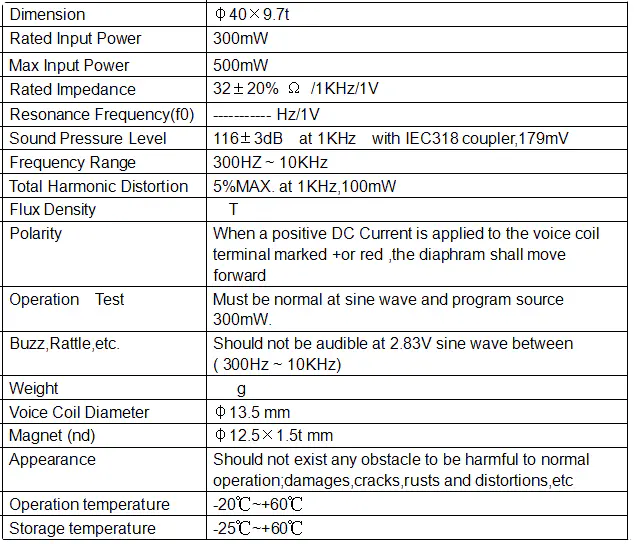

RYD SDRP40G10-03A32 Φ40mm High-Output Audio Unit for Automotive and Consumer Electronics. This Φ40×9.7mm receiver handles 300mW rated input power (500mW max) with 116±3dB SPL at 32±20%Ω impedance (IEC318 coupler, 179mV). Frequency range is 300Hz–10kHz with THD 5% max at 1kHz/100mW. Voice coil diameter is Φ13.5mm with Φ12.5×1.5mm neodymium magnet. Operating temperature -20℃ to +60℃, storage -25℃ to +60℃. The high power handling and robust magnetic structure make it suitable for car audio systems, gaming headsets, portable Bluetooth speakers, and other applications requiring sustained high-volume output without thermal compression. Manufactured under RYD ISO9001 quality system.
