SDRP30P6-10PG32

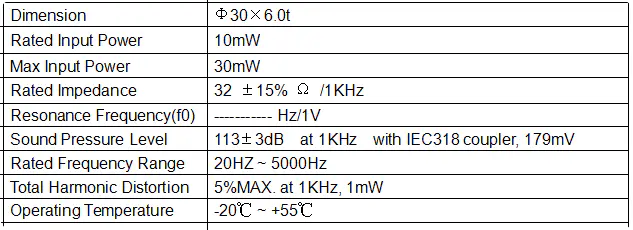

RYD SDRP30P6-10PG32 Φ30mm Ultra-Low Power Sound Driver for IoT and Wearable Consumer Electronics. This Φ30×6.0mm receiver operates at only 10mW rated power (30mW max) while delivering 113±3dB SPL at 32Ω impedance (IEC318 coupler, 179mV). Frequency range covers 20Hz–5kHz with THD of 5% max at 1kHz/1mW. Operating temperature is -20℃ to +55℃. The extremely low power consumption extends battery life in always-on portable devices, making it suitable for smartwatches, fitness trackers, low-power IoT sensor nodes, and compact voice prompt modules where energy efficiency is a primary design constraint. RoHS compliant materials used throughout.
