YDBA5090M28-5PP8

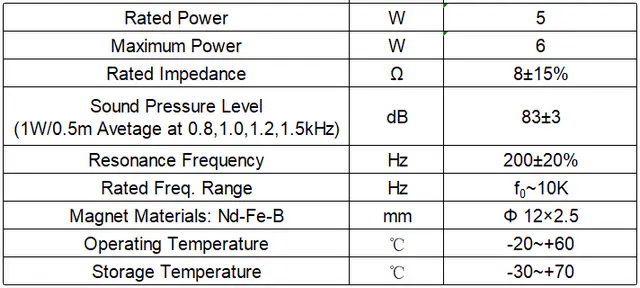

RYD YDBA5090M28-5PP8 is a 50×90×27.8mm rectangular speaker rated 5W (6W max) at 8Ω, with a Φ12×2.5mm neodymium magnet. Specifications: 200Hz resonance, Fo~10kHz response, SPL 83±3dB at 1W/0.5m, operating from -20°C to +60°C. The large rectangular footprint delivers full sound for multimedia devices, smart home audio, intercoms and equipment sound systems. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection method and waterproof or dustproof level; new designs can be developed for volume programs. Contact RYD for enclosure matching.
