YDBA45M28-6PU5

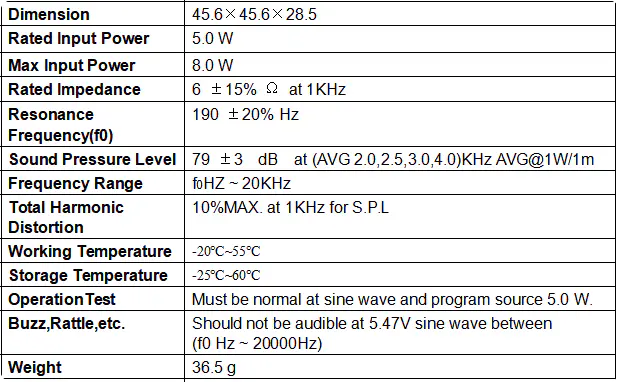

RYD YDBA45M28-6PU5 is a 45.6×45.6×28.5mm square speaker rated 5.0W (8.0W max) at 6Ω. Key parameters: 190Hz resonance, Fo~20kHz response, SPL 79±3dB at 1W/1m, distortion within 10%, weight 36.5g, operating from -20°C to +55°C. It serves smart speakers, TV audio, portable PA and equipment sound systems needing a square-frame driver. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection method and waterproof or dustproof level; new designs can be developed for volume programs. Contact RYD for system matching.
