YDB66M17-500P32

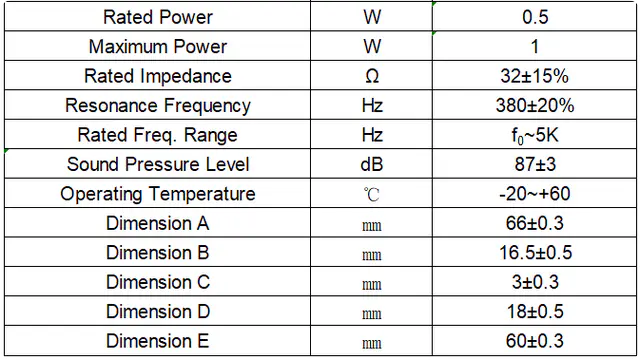

RYD YDB66M17-500P32 is a φ66×16.5mm high-impedance speaker rated 32Ω, 0.5W (1.0W max). Specifications: 380Hz resonance, Fo~5kHz response, SPL 87±3dB, operating from -20°C to +60°C. The 32Ω impedance supports multi-point voice wiring in building intercoms, medical alert systems, industrial indication and IoT audio networks. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: impedance values, sensitivity, connection method and waterproof or dustproof level; new designs can be developed for volume programs. Contact RYD with your line layout.
