YDB40M6-1500B8

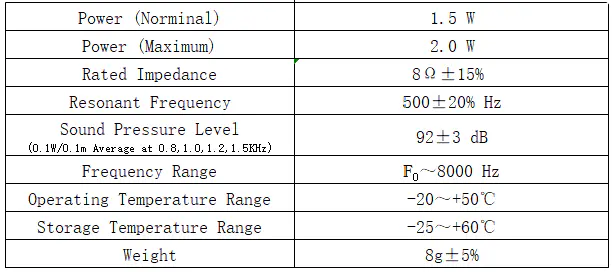

RYD YDB40M6-1500B8 is a φ40×5.8mm thin speaker rated 1.5W (2.0W max) at 8Ω. Key parameters: 500Hz resonance, Fo~8kHz response, SPL 92±3dB at 0.1W/0.1m, operating from -20°C to +50°C. The 92dB sensitivity at low drive suits appliances, instruments, medical devices and smart home panels where efficient voice output matters. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity tuning, impedance, connection method and waterproof or dustproof level; new designs can be developed for volume programs. Contact RYD for drive circuit matching.
