DMT181808-03

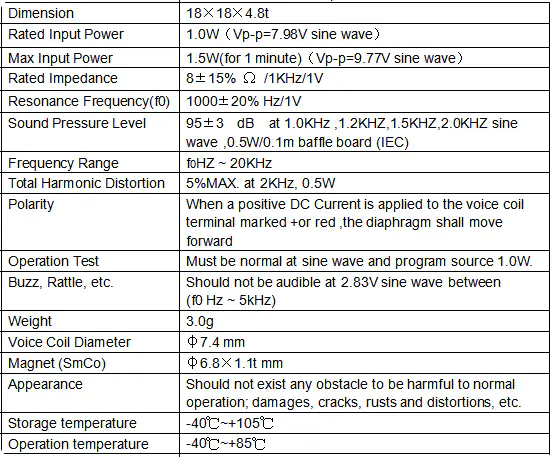

RYD DMT181808-03 is an 18×18×4.8mm SMD micro speaker rated 1.0W (1.5W max for 1 minute) at 8Ω, with a SmCo magnet. Specifications: 1000Hz resonance, Fo~20kHz response, SPL 95±3dB at 0.5W/0.1m, distortion within 5%, weight 3.0g, storage up to +105°C, operation from -40°C to +85°C. The SmCo magnetic circuit maintains stable performance at elevated temperature, suited to automotive electronics, industrial control boards and high-reliability consumer products. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection style and waterproof or dustproof level; volume programs may include new development. Contact RYD for high-temperature application matching.
