DMSP203608-02AW-01

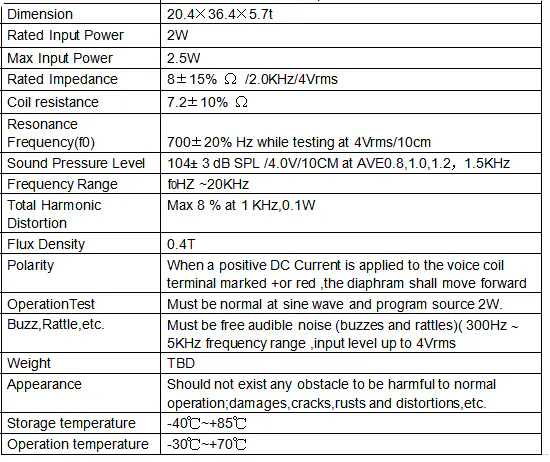

RYD DMSP203608-02AW-01 is a 20.4×36.4×5.7mm high-output micro speaker delivering 104±3dB at 4V/10cm. Rated input is 2W (2.5W max) at 8Ω, resonance 700Hz, effective range Fo~20kHz, distortion within 8% at 0.1W, operating from -30°C to +70°C. This combination of loudness and bandwidth suits high-volume smartphones, portable PA modules, outdoor IoT equipment and industrial alert devices. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection style and waterproof or dustproof treatment; volume programs may include new development. Contact RYD for power and SPL planning.
