DMSP111508-04AT-12

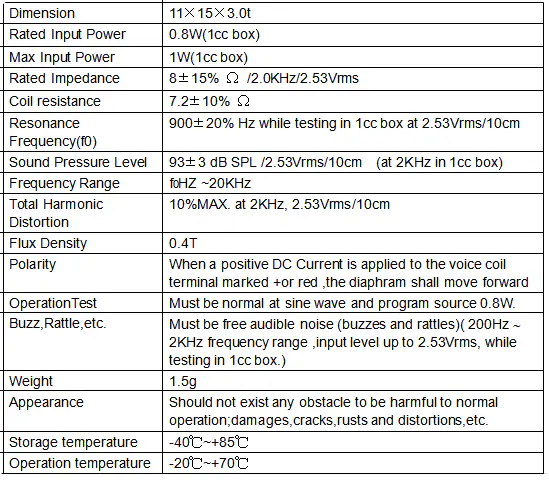

RYD DMSP111508-04AT-12 is an 11×15×3.0mm micro speaker rated 0.8W (1.0W max) in a 1cc cavity at 8Ω. Measured in a 1cc test fixture: resonance 900Hz, SPL 93±3dB at 2.53V/10cm, effective range Fo~20kHz, distortion within 10%, weight 1.5g. It suits smartphones, portable players, IoT terminals and medical handheld devices. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection style, lead wire length and waterproof or dustproof level; new designs can be developed for volume programs. Contact RYD with your enclosure layout.
