YSG52P13-4C15

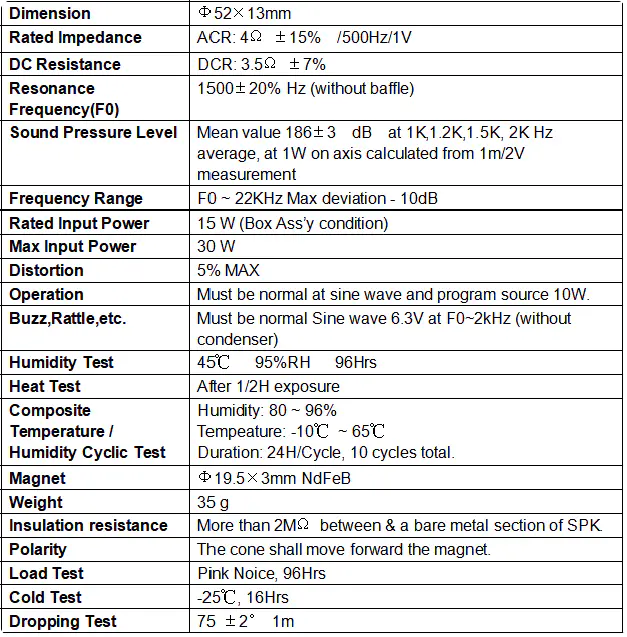

RYD YSG52P13-4C15 is a φ52×13mm dome tweeter with a Φ19.5×3mm neodymium magnet, rated 15W in box assembly (30W maximum). Specifications: 4Ω impedance (ACR at 500Hz), 1500Hz resonance, response Fo~22kHz and high output across the 1k~2kHz band, with distortion within 5% and weight only 35g. The extended 22kHz upper limit reproduces treble detail and sparkle, complementing mid-bass drivers in car audio systems, home speakers and professional cabinets. Qualification includes humidity, heat, cold, load and dropping tests. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection style and crossover recommendations; new designs can be developed for volume programs. Contact RYD to pair this tweeter with your woofer.
