YDA102M36-5P4.8

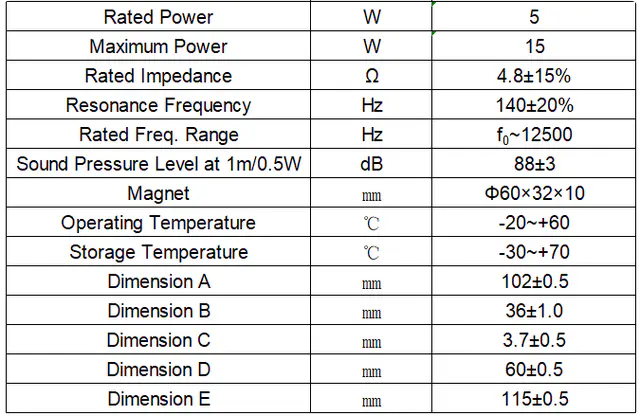

RYD YDA102M36-5P4.8 is a 102×102×36mm square full-range loudspeaker rated 5W with 15W maximum input. Specifications: 4.8Ω impedance, 140Hz resonance, Fo~12.5kHz response, sensitivity 88±3dB measured at 0.5W/1m, Φ60×32×10mm magnet. The non-standard 4.8Ω impedance reflects a tailored design approach — RYD can adjust impedance and sensitivity to match your amplifier, and this model suits smart home audio, consumer electronics and automotive auxiliary sound. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection methods and waterproof or dustproof treatment; new designs can be developed for volume programs. Contact RYD to align electrical parameters with your amplifier.
