YDA86M39-10UPP4

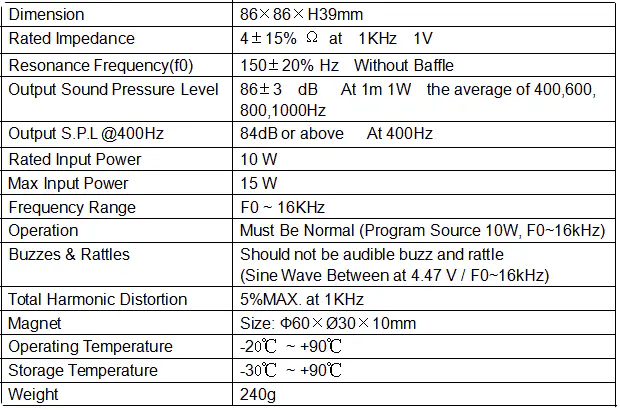

RYD YDA86M39-10UPP4 is an 86×86×39mm automotive loudspeaker rated 10W (15W maximum) with high-temperature capability up to +90°C. Specifications: 4Ω impedance, 150Hz resonance, Fo~16kHz response, 86±3dB sensitivity at 1m/1W, distortion within 5%, Ф60×Ø30×10mm magnet, weight 240g. It is designed for vehicle positions that run hot, including door cavities in direct sun and near-heat installations in commercial vehicles, while remaining suitable for industrial equipment and smart home audio. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection style and waterproof or dustproof treatment; volume programs may include new development. Contact RYD for installation position advice.
