YDA77M38-8FU15

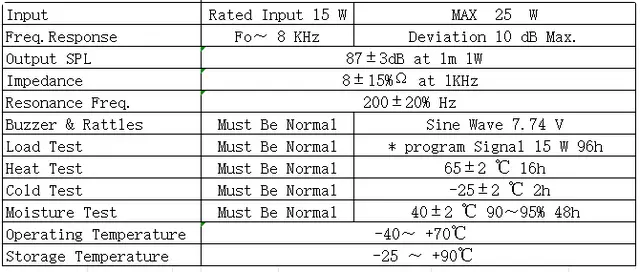

RYD YDA77M38-8FU15 is a φ95×38mm automotive loudspeaker supplied with a mounting bracket (outer diameter 95mm), rated 15W with 25W maximum input. It features 8Ω impedance, 200Hz resonance, Fo~8kHz response and 87±3dB sensitivity at 1m/1W, operating from -40°C to +70°C. The integrated bracket speeds assembly on vehicle production lines and aftermarket installations, and the driver suits door positions, dash audio and commercial vehicle cabins. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection style and waterproof or dustproof grade; volume programs may include new development. Contact RYD for bracket and fitment specifications.
