YDA77M37-5P4

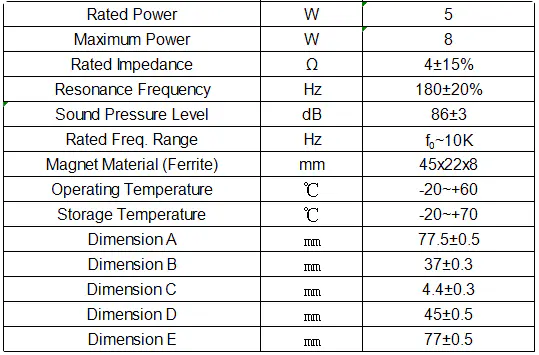

RYD YDA77M37-5P4 is a 77.5×77.5×37mm square loudspeaker with a 45×22×8mm ferrite magnet, rated 5W (8W maximum) for smart home, consumer and automotive audio. Specifications: 4Ω impedance, 180Hz resonance, Fo~10kHz response and 86±3dB sensitivity. Its balanced frame size and moderate power make it a versatile driver for soundbars, desktop speakers, home intercoms and vehicle auxiliary sound. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity tuning, impedance, connection options and waterproof or dustproof treatment; new designs can be developed for volume programs. Contact RYD for dimensional drawings.
