YDA76M41-4PU15W110

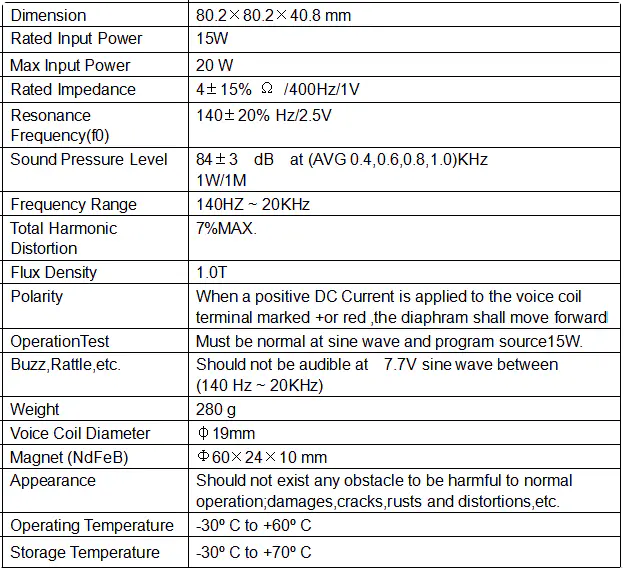

RYD YDA76M41-4PU15W110 is an 80.2×80.2×40.8mm square loudspeaker with a Φ60×24×10mm neodymium magnet and 1.0T flux density, rated 15W (20W maximum). Specifications: 4Ω impedance, 140Hz resonance, response 140Hz~20kHz, sensitivity 84±3dB at 1W/1m, distortion within 7%, weight 280g, φ19mm voice coil. The high flux density of the neodymium circuit provides firm diaphragm control for detailed midrange and voice, fitting automotive audio positions, professional equipment and consumer speakers that demand compact size with high power handling. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection style and waterproof or dustproof grade; volume programs may include new development. Contact RYD for magnetic circuit details.
