YD158-17-4F80R

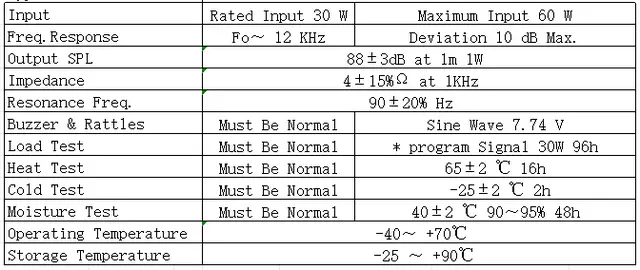

RYD YD158-17-4F80R is a φ172×69mm large-format automotive loudspeaker rated 30W with 60W maximum input. It features 4Ω impedance, 90Hz resonance, Fo~12kHz response and 88±3dB sensitivity at 1m/1W, operating from -40°C to +70°C. The large cone area moves more air at low frequencies, producing fuller sound for cabin and cab audio, and the wide temperature window supports vehicles operating in extreme climates, including trucks, buses and special-purpose vehicles. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection style and waterproof or dustproof grade; volume programs may include new development. Contact RYD for mounting and enclosure advice.
